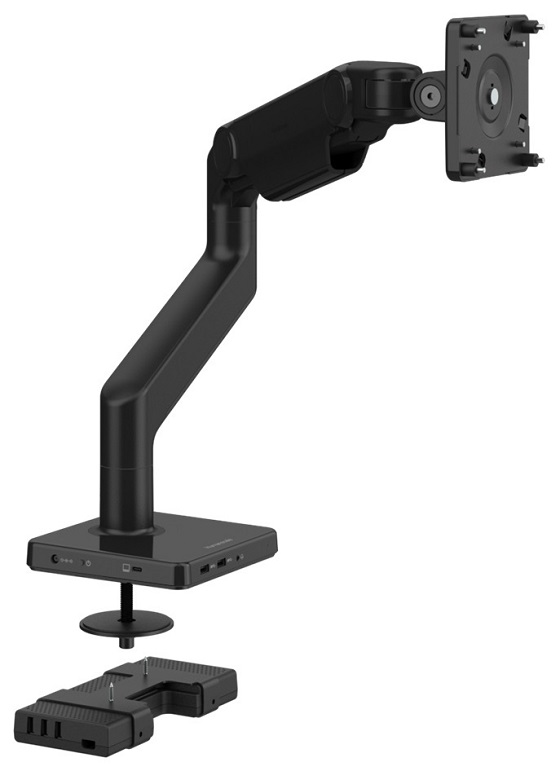

Humanscale M8.1 monitor stand with docking station M/Connect 2 screw fixing black

Product detailed description

Innovative technologies such as Humanscale's patented weight compensation spring technology and Smart Stop feature give the M8.1 arm the adaptability and flexibility needed for today's evolving workplace.

The M8.1 supports a better working position, creates more usable space on the work surface and helps keep the workplace clear. It offers quick, easy installation and superior flexibility thanks to quick-release joints that connect instantly for a secure and robust connection.

Designer: Humanscale Design Studio

Specification: monitor arm /stand Humanscale model M8.1 for a heavier monitor with dynamic link and built-in M/Connect 2 docking station for one display in design: black, "B" screw fastening M81M2-BBBTBNA.

Features and benefits of the monitor stand:

• allows users to view their monitor(s) in an optimal position
• the rubberized cable system allows for simple, clean and elegant cabling management using a modular system
• patented weight-compensating spring technology allows smooth and even height adjustment
• a built-in balance indicator allows you to balance the weight of the monitor
• patented Smart Stop technology allows the user to adjust the rotation of the arm, prevent overhang and protect surrounding equipment
• patented quick-release joints snap together instantly for a secure, high-quality fit and simplify installation, with only one tool needed, neatly packed into the arm
• can be configured to hold up to two monitors
• compatible with M/Connect 2 and M/Power, the first integrated monitor arms and docking stations of its kind

Benefits of the docking station M/Connect 2:

• 7 ports with USB for data and charging
• universal USB docking station with USB-C, USB-A and Thunderbolt connections
• backward compatible with USB-A
• optional 60W or 100W power supply options
• supports 4K video resolution for up to 2 monitors
• contains a total of 11 ports for power and data
• includes two charging ports designed solely for power and mitigating potential security risks
• various mounting options are available for easy application to any work surface
• color options: polished aluminum with white edging, silver with gray edging, black with black edging (M/Connect Hub only)
• a Kensington security lock slot is available for both the hub and the docking station for additional security and anti-theft protection (not included)

Technical specification of the monitor stand:

• incredibly very light but stable display control
• one article static + one article dynamic
• recommended load weight: 2.7 - 12.7 kg
• recommended weight for curved monitors: 2.7 - 9 kg
• monitor distance adjustment range: up to 604 mm
• height adjustment range: up to 252 mm
• screw fastening for boards up to 58 mm thick
• adjustable rotation: 90°, 180° and 360° stop protects walls and panels
• constructed primarily from 100% recycled and recyclable aluminum
• VESA standard 75 x 75 mm and 100 x 100 mm
• weight: 6 kg
• package contents: black arm M8.1 including fixing, VESA standard including accessories, set of hexagons

Technical specification of the M/Connect docking station:

• for models: M2.1, M8.1 and M10
• Hub size: 150 x 150 x 22.5 mm
• Dock dimension: 191 x 90 x 23 mm
• a total of 11 ports for power and data:
• 2x USB-A data port
• 1x USB-C charging port
• 1x USB-A charging port
• 1x 3.5mm audio/microphone
• Dock under the table:
• 3x USB-A data port (1x charging port)
• 2x display port
• 1x Ethernet connector
• M/Connect Hub color design: black
• M/Connect Dock color design: black
• package contents: M/coontect Hub, M/Connect Dock, power adapter, USB-C cable with USB-A adapter

Environment

Humanscale's expertly designed monitor arms are shipped disassembled, greatly reducing the size of the package, yet maintaining the speed of installation. Modular joints allow users to design the most productive space without additional components, saving resources. This means that these arms require much less energy, resources and processes on the way from the factory to the office. We think about the impact of our products on humanity during production and during use. The arms are made from quality, non-toxic materials and their durable design ensures they won't need to be replaced for many years.
